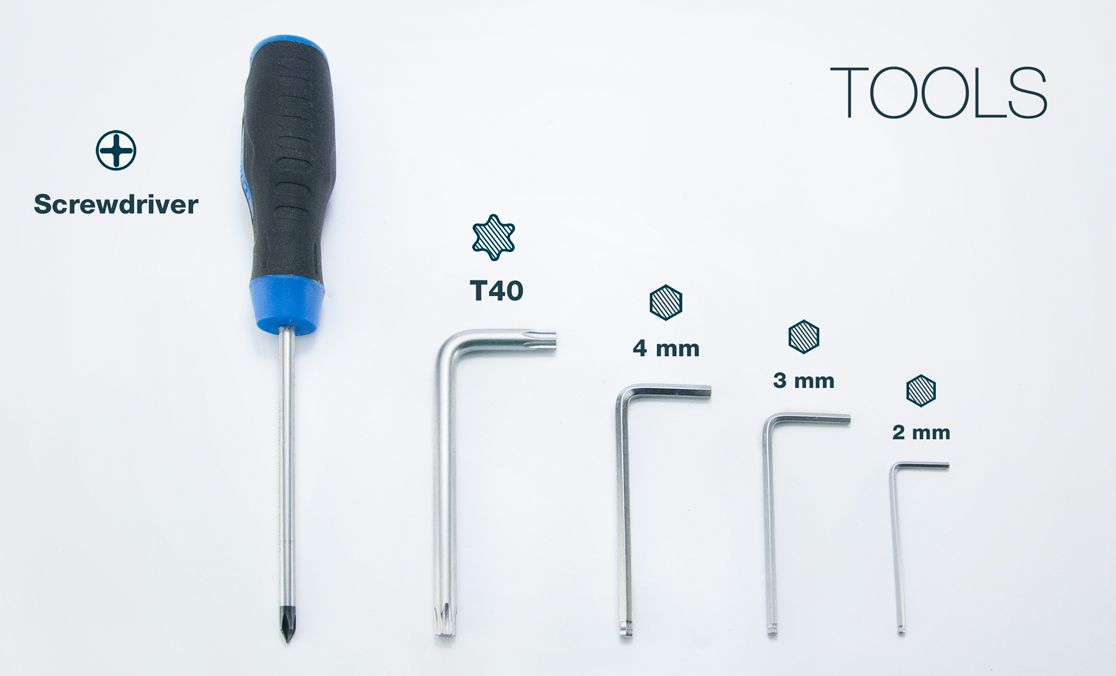

In order to install Garbaruk RD cage seamlessly, you will need the following tools:

• Phillips head screwdriver

• T40 torx key

• 4mm Allen (hex) key

• 3mm Allen (hex) key

• 2mm Allen (hex) key

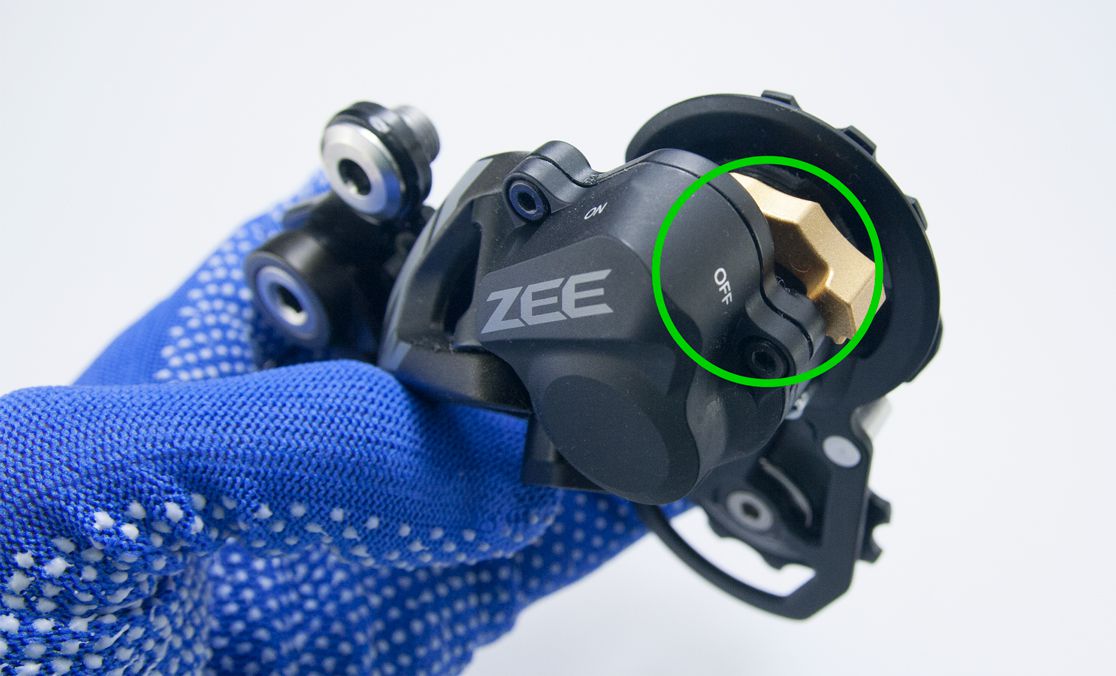

ATTENTION: Remember to turn the friction clutch off in order to disassemble the derailleur cage

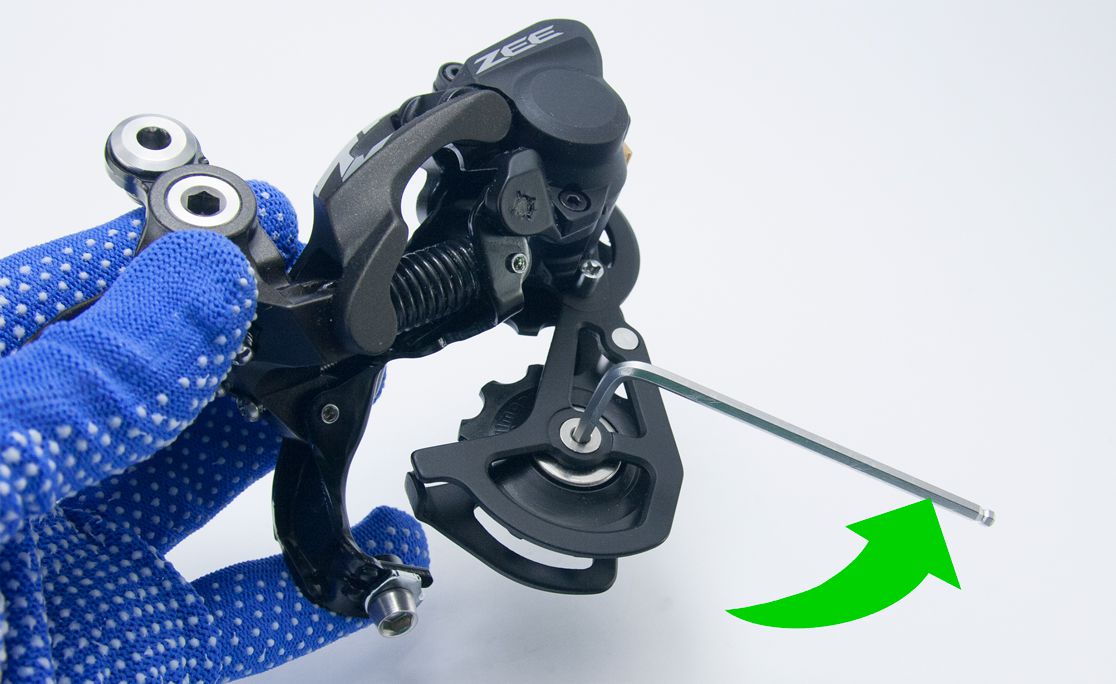

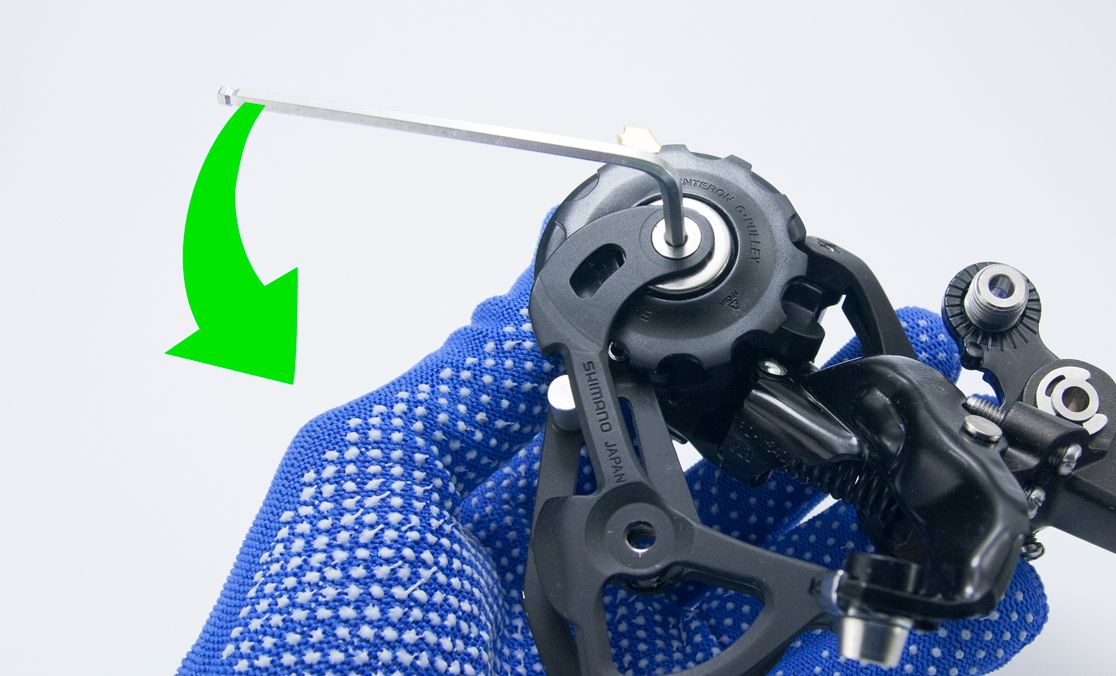

Undo the screws holding pulleys in place

Unscrew the stopper bolt located near the top part of the cage

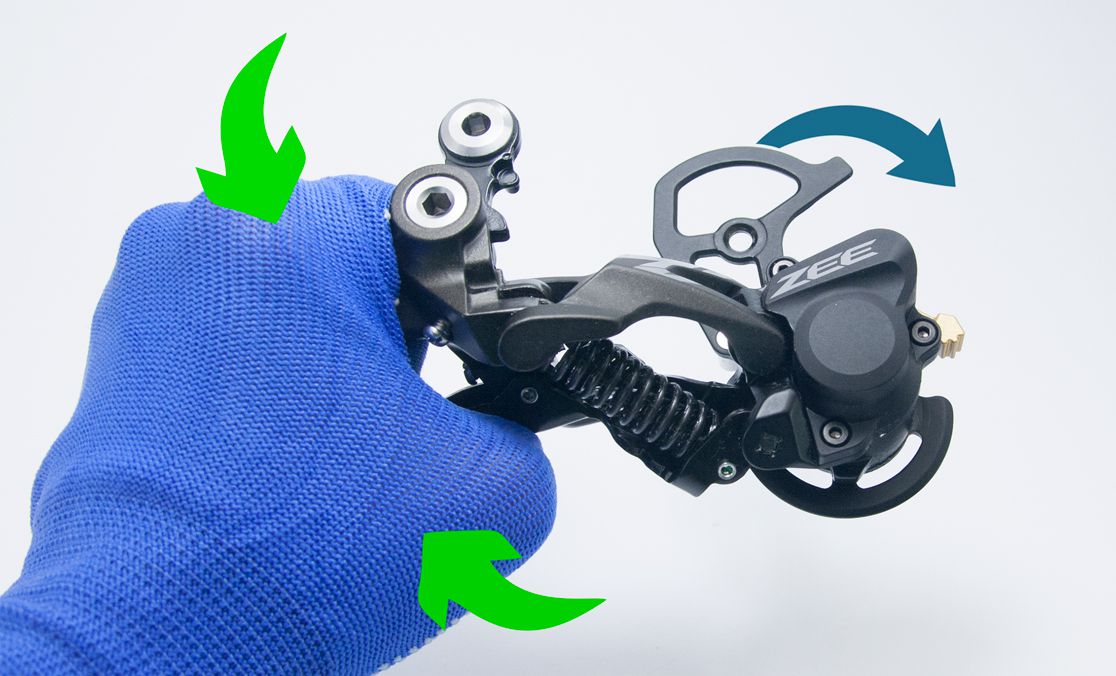

In order to remove the standard cage, first you need to compress the derailleur spring and turn the derailleur cage in clockwise direction, thus tightening it as well

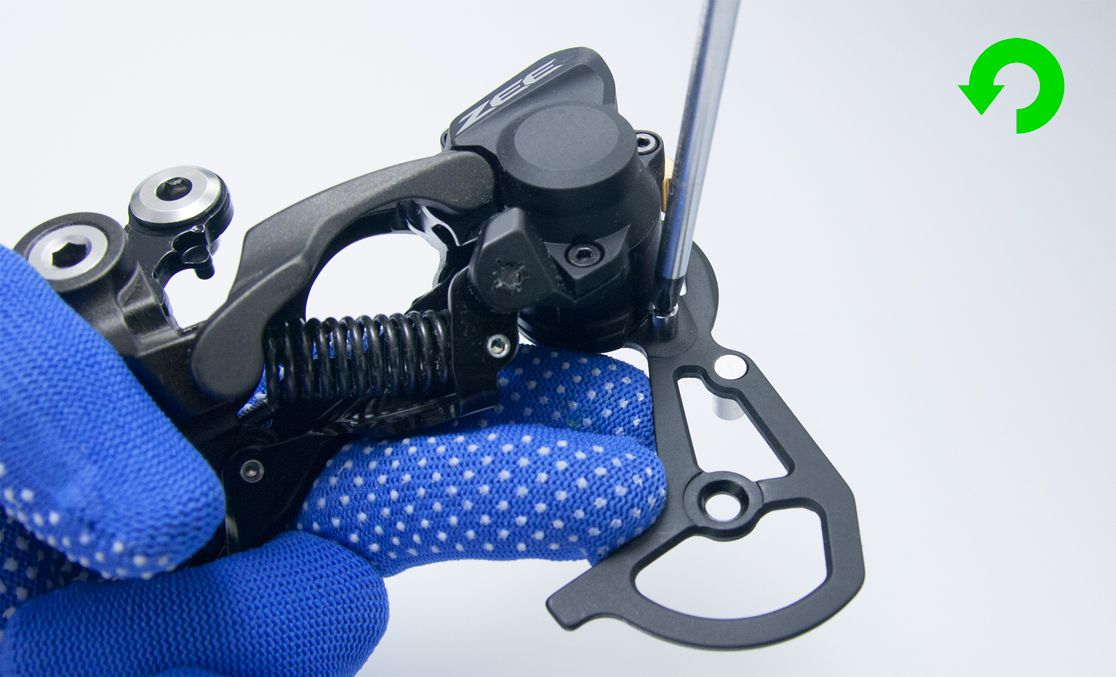

While holding the derailleur cage and spring tightened, unscrew friction clutch protective cover bolts

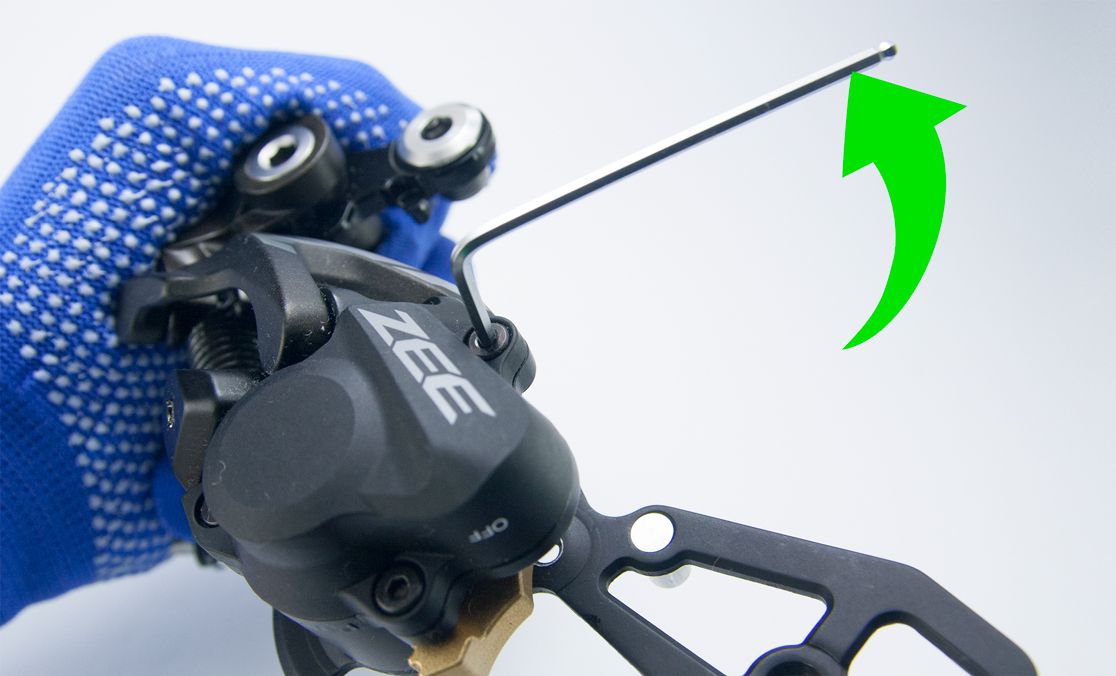

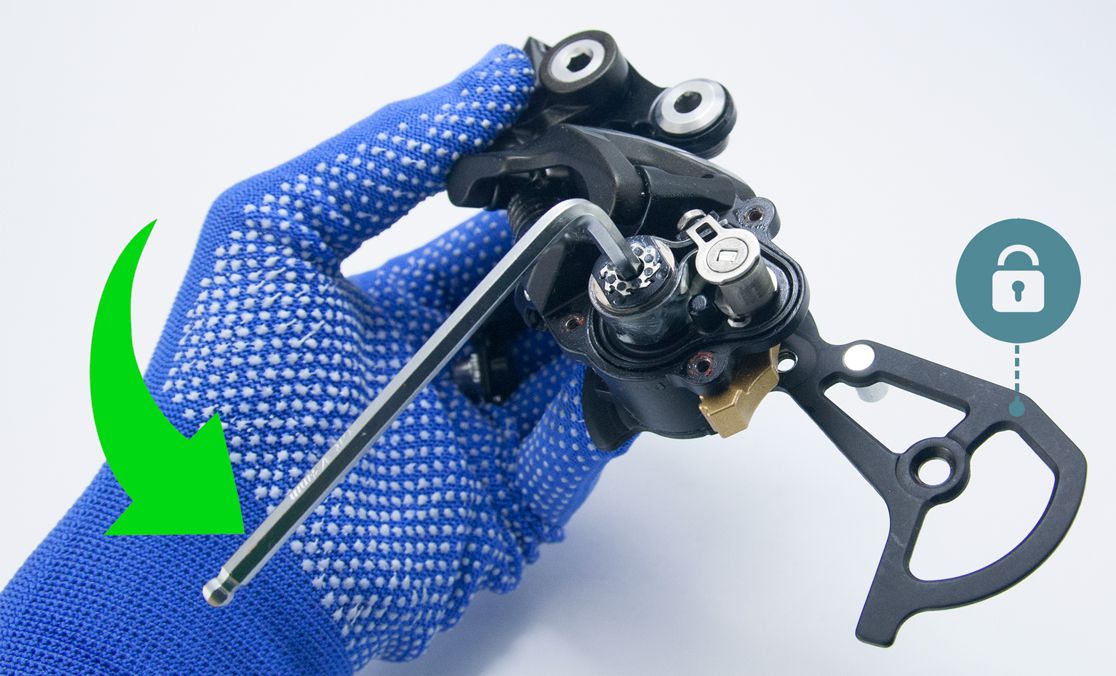

Unscrew the friction clutch bolt

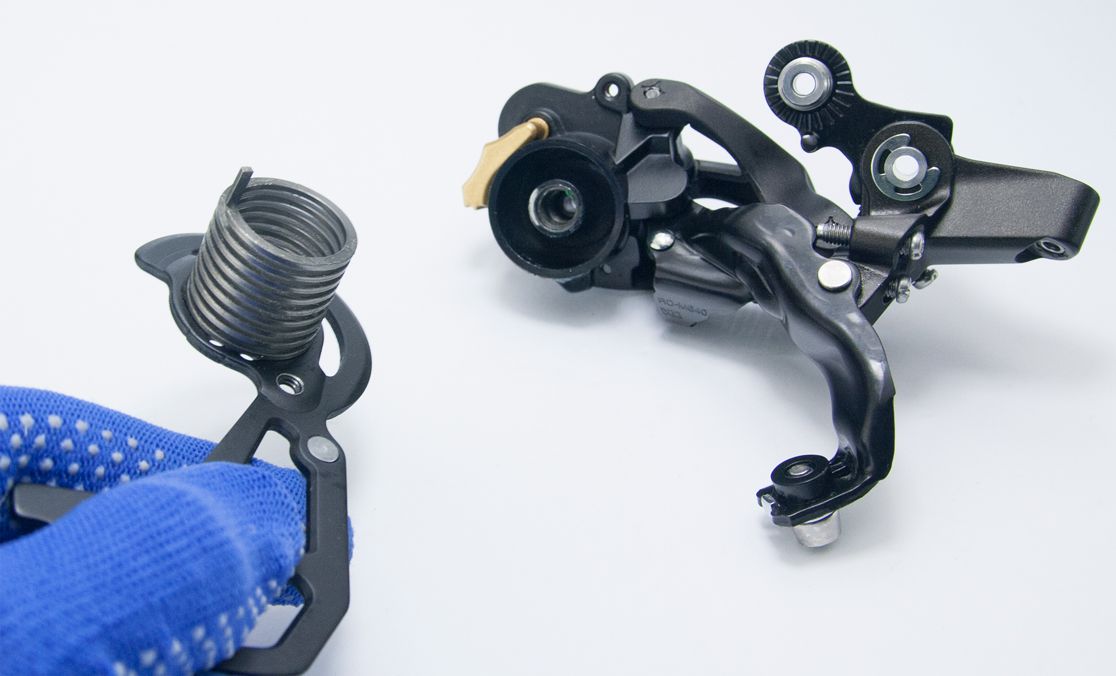

Remove the standard derailleur cage

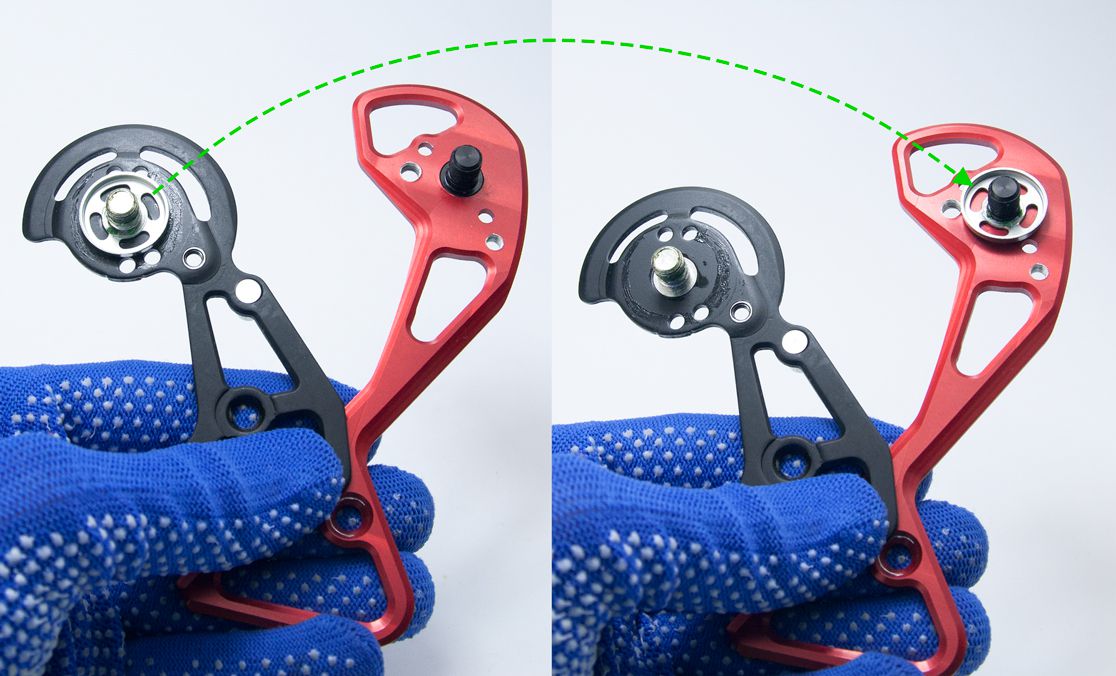

Remove the standard derailleur cage spring base and install it on Garbaruk cage

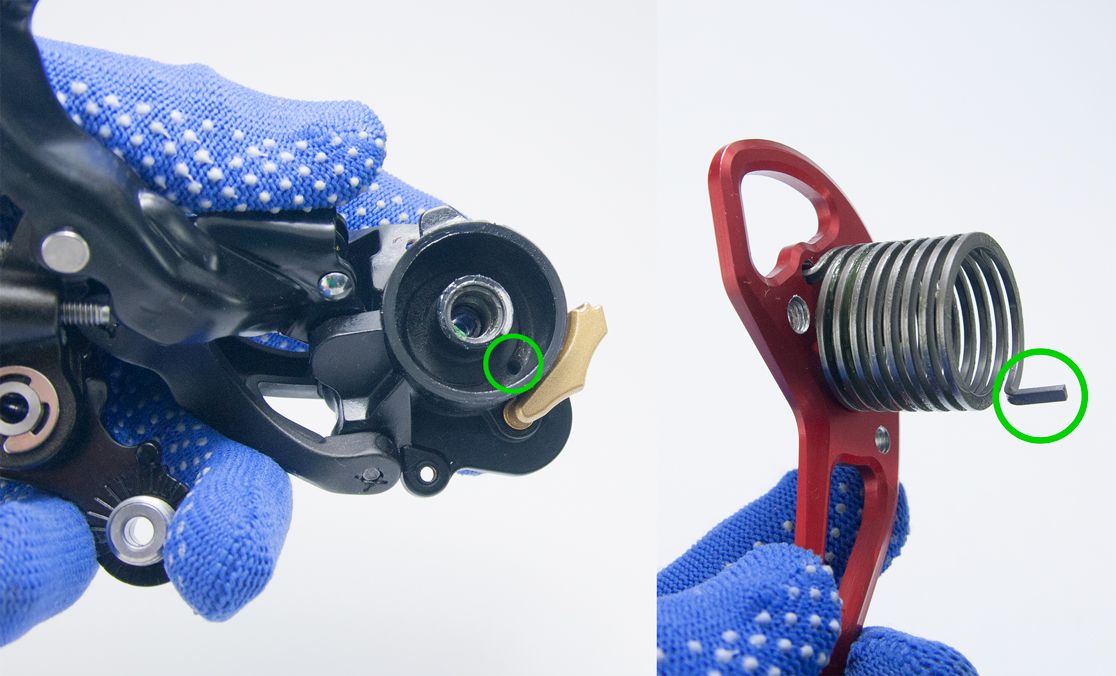

Insert the outer end of derailleur clutch spring into the appropriate hole in the friction clutch body

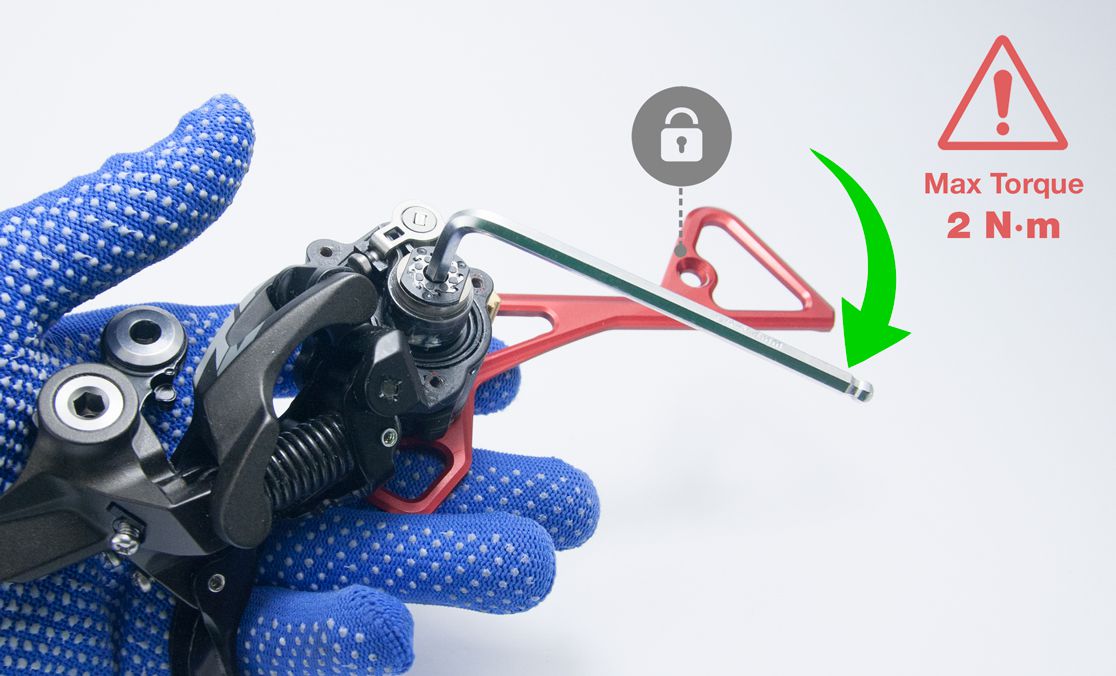

While holding Garbaruk RD cage in place, tighten the friction clutch bolt to 2 Nm

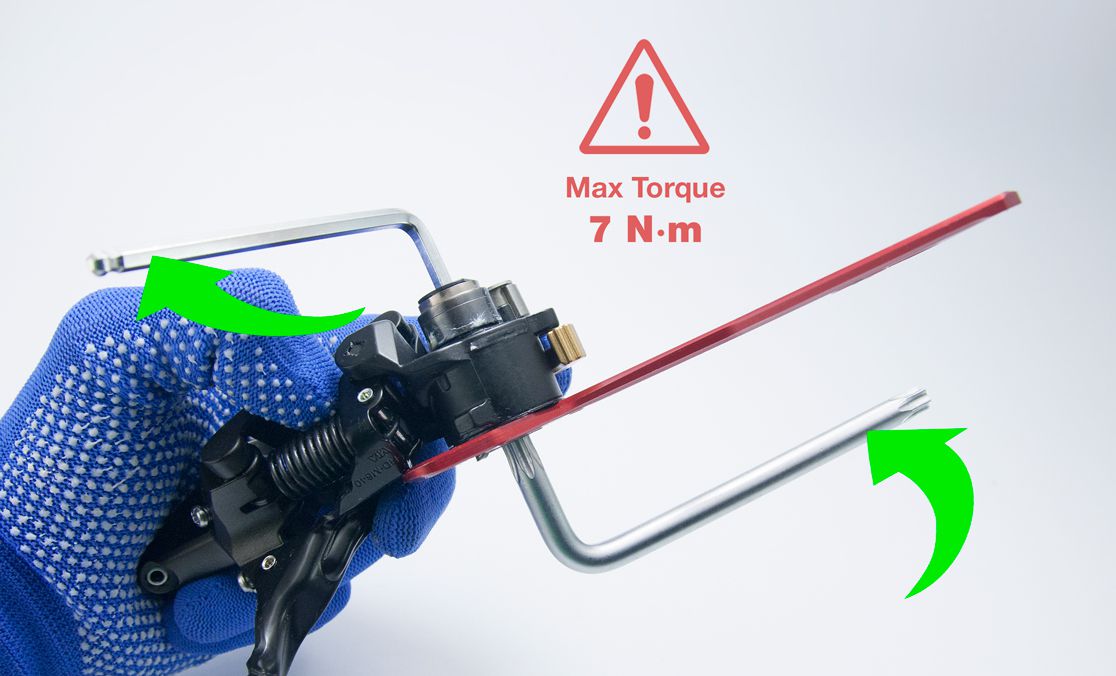

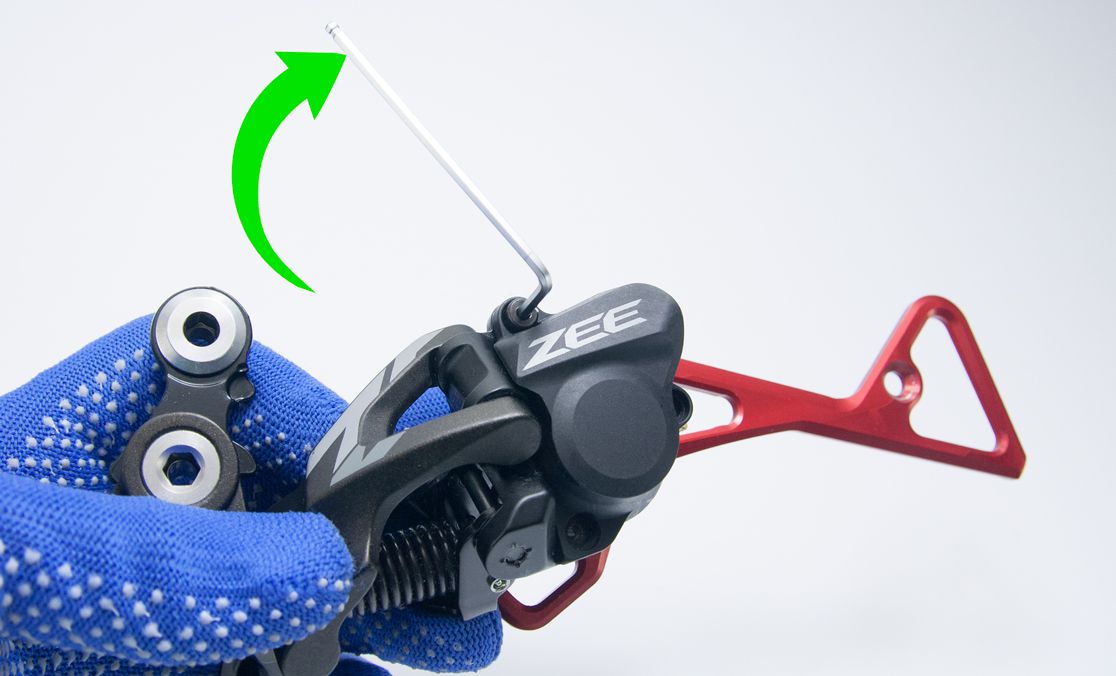

Tighten the bolt holding the derailleur cage in place to 7 Nm

Tighten the derailleur clutch protective cover bolts

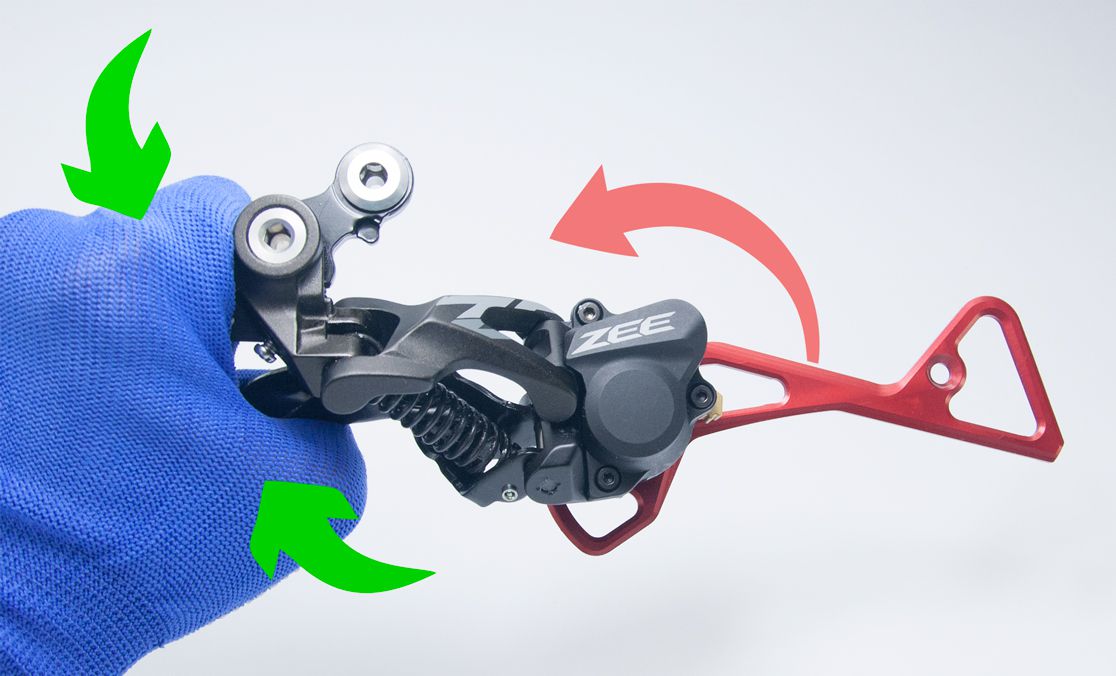

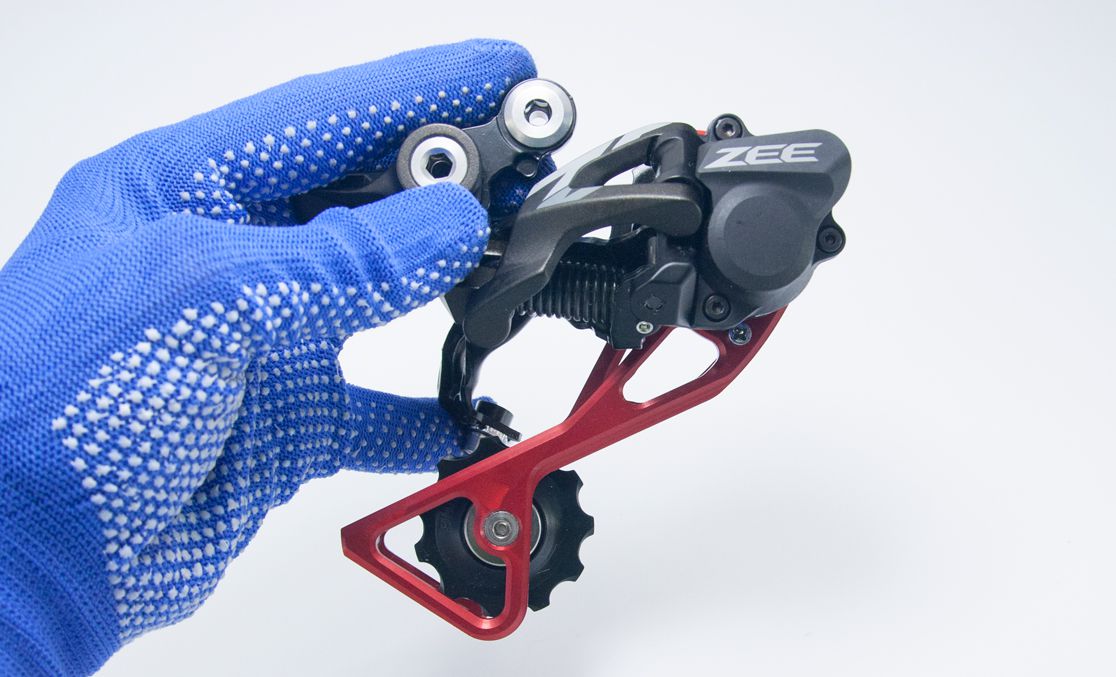

Compress the derailleur spring and keep the derailleur cage from rotating counter-clockwise

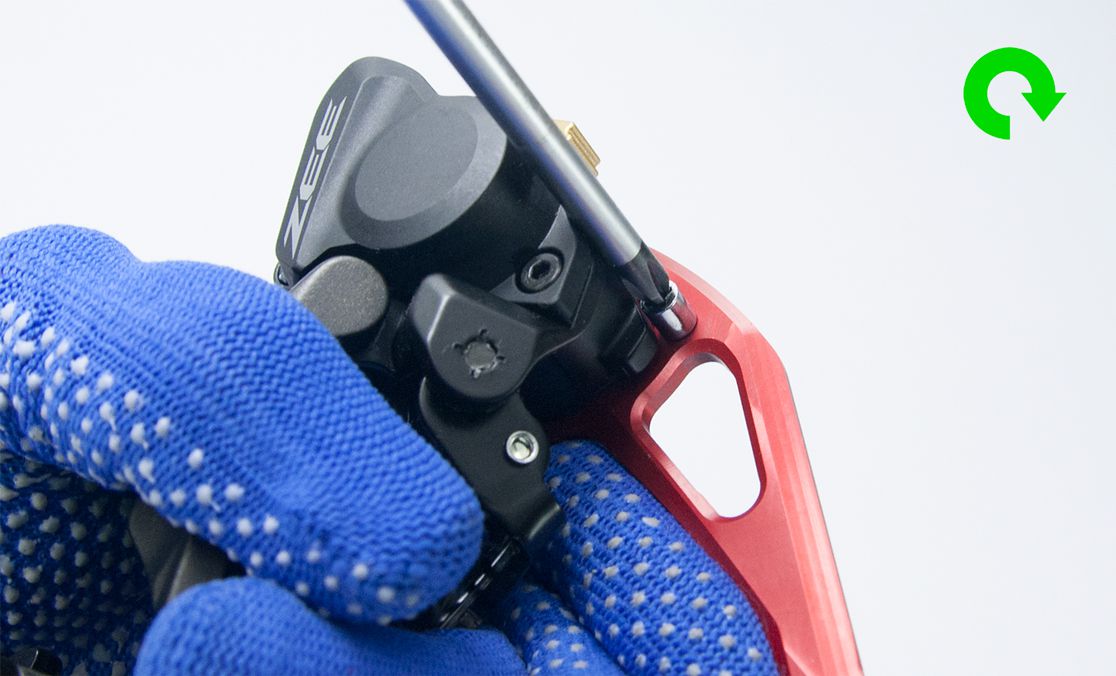

Re-tighten the derailleur cage stopper bolt
